GNE-477

dual PI3K/mTOR inhibitor CAS# 1032754-81-6

GNE-477

Catalog No. BCC8049----Order now to get a substantial discount!

Product Name & Size Price Stock
GNE-477: 5mg $1208 In Stock
GNE-477: 10mg Please Inquire In Stock
GNE-477: 20mg Please Inquire Please Inquire
GNE-477: 50mg Please Inquire Please Inquire
GNE-477: 100mg Please Inquire Please Inquire
GNE-477: 200mg Please Inquire Please Inquire
GNE-477: 500mg Please Inquire Please Inquire
GNE-477: 1000mg Please Inquire Please Inquire
Related Products

Quality Control of GNE-477

Number of papers citing our products

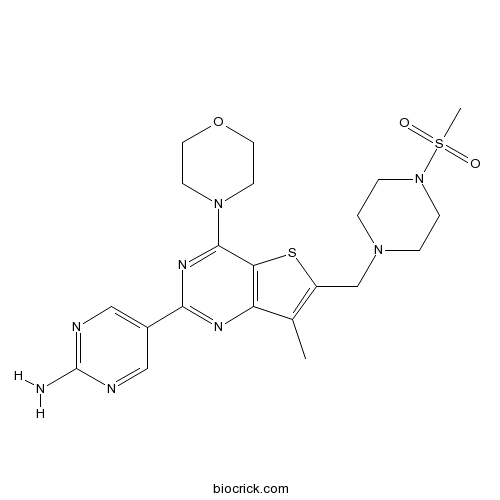

Chemical structure

GNE-477

3D structure

Chemical Properties of GNE-477

Cas No. 1032754-81-6 SDF Download SDF
PubChem ID 25207689 Appearance Powder
Formula C21H28N8O3S2 M.Wt 504.63
Type of Compound N/A Storage Desiccate at -20°C
Solubility DMSO : 16.67 mg/mL (33.03 mM; Need ultrasonic)
Chemical Name 5-[7-methyl-6-[(4-methylsulfonylpiperazin-1-yl)methyl]-4-morpholin-4-ylthieno[3,2-d]pyrimidin-2-yl]pyrimidin-2-amine
SMILES CC1=C(SC2=C1N=C(N=C2N3CCOCC3)C4=CN=C(N=C4)N)CN5CCN(CC5)S(=O)(=O)C
Standard InChIKey AKKCGLXULFRAET-UHFFFAOYSA-N
Standard InChI InChI=1S/C21H28N8O3S2/c1-14-16(13-27-3-5-29(6-4-27)34(2,30)31)33-18-17(14)25-19(15-11-23-21(22)24-12-15)26-20(18)28-7-9-32-10-8-28/h11-12H,3-10,13H2,1-2H3,(H2,22,23,24)
General tips For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months.
We recommend that you prepare and use the solution on the same day. However, if the test schedule requires, the stock solutions can be prepared in advance, and the stock solution must be sealed and stored below -20℃. In general, the stock solution can be kept for several months.
Before use, we recommend that you leave the vial at room temperature for at least an hour before opening it.
About Packaging 1. The packaging of the product may be reversed during transportation, cause the high purity compounds to adhere to the neck or cap of the vial.Take the vail out of its packaging and shake gently until the compounds fall to the bottom of the vial.
2. For liquid products, please centrifuge at 500xg to gather the liquid to the bottom of the vial.
3. Try to avoid loss or contamination during the experiment.
Shipping Condition Packaging according to customer requirements(5mg, 10mg, 20mg and more). Ship via FedEx, DHL, UPS, EMS or other couriers with RT, or blue ice upon request.

Biological Activity of GNE-477

DescriptionGNE-477 is a potent and efficacious dual PI3K (IC50=4 nM)/mTOR(Ki=21 nM) inhibitor.In Vitro:GNE-477 (Compound 8) has improved potency in the MCF7.1 cell proliferation assay with an EC50 of 143 nM[1].In Vivo:GNE-477 also exhibits stasis in a PC3 tumor growth inhibition study. In an experiment evaluating the tumor growth inhibition of a PC3 tumor xenograft over 14 days, stasis is achieved at a 20 mg/kg QD dose and significant inhibition is observed with doses as low as 1 mg/kg QD. GNE-477 is generally well tolerated during this study as demonstrated by acceptable levels of weight loss comparable to that observed with the animals in the vehicle cohort[1].

References:
[1]. Heffron TP, et al. Identification of GNE-477, a potent and efficacious dual PI3K/mTOR inhibitor. Bioorg Med Chem Lett. 2010 Apr 15;20(8):2408-11.

Protocol

Animal Administration [1]
Mice, Rats and Dogs[1] Female nu/nu mice are dosed with the GNE-477 HCl salt as a solution intraveinously (1 mg/kg) in 5% DMSO/5% cremophor and dosed orally as a solution in 80% PEG (5 mg/kg). Male rats are dosed with the GNE-477 TFA salt as a solution intraveinously (1 mg/kg) in 5% DMSO/5% cremophor and dosed orally as a solution in 80% PEG (5 mg/kg). Male beagle dogs are dosed with the GNE-477 HCl salt as a solution intraveinously (1 mg/kg) in 10% HP-β-CD and dosed orally as a suspension in MCT (2 mg/kg). Efficacy study of GNE-477 in the PC3-NCI tumor xenograft model is proformed. The percent of tumor growth inhibition (TGI) at the end of study (day 14) is measured and compared with the vehicle control group.

References:
[1]. Heffron TP, et al. Identification of GNE-477, a potent and efficacious dual PI3K/mTOR inhibitor. Bioorg Med Chem Lett. 2010 Apr 15;20(8):2408-11.

GNE-477 Dilution Calculator

Concentration (start)
x
Volume (start)
=
Concentration (final)
x
Volume (final)



C1
V1
C2
V2

calculate

GNE-477 Molarity Calculator

Mass
=
Concentration
x
Volume
x
MW*



g/mol

calculate

Preparing Stock Solutions of GNE-477

1 mg 5 mg 10 mg 20 mg 25 mg
1 mM 1.9816 mL 9.9082 mL 19.8165 mL 39.633 mL 49.5412 mL
5 mM 0.3963 mL 1.9816 mL 3.9633 mL 7.9266 mL 9.9082 mL
10 mM 0.1982 mL 0.9908 mL 1.9816 mL 3.9633 mL 4.9541 mL
50 mM 0.0396 mL 0.1982 mL 0.3963 mL 0.7927 mL 0.9908 mL
100 mM 0.0198 mL 0.0991 mL 0.1982 mL 0.3963 mL 0.4954 mL
* Note: If you are in the process of experiment, it's necessary to make the dilution ratios of the samples. The dilution data above is only for reference. Normally, it's can get a better solubility within lower of Concentrations.

Organizitions Citing Our Products recently





Calcutta University

University of Minnesota

University of Maryland School of Medicine

University of Illinois at Chicago

The Ohio State University

University of Zurich

Harvard University

Colorado State University

Auburn University

Yale University

Worcester Polytechnic Institute

Washington State University

Stanford University

University of Leipzig

Universidade da Beira Interior

The Institute of Cancer Research

Heidelberg University

University of Amsterdam

University of Auckland
TsingHua University
TsingHua University
The University of Michigan
The University of Michigan
Miami University
Miami University
DRURY University
DRURY University
Jilin University
Jilin University
Fudan University
Fudan University
Wuhan University
Wuhan University
Sun Yat-sen University
Sun Yat-sen University
Universite de Paris
Universite de Paris
Deemed University
Deemed University
Auckland University
Auckland University
The University of Tokyo
The University of Tokyo
Korea University
Korea University

Background on GNE-477

IC50: 4 and 21 nmol/L for PI3K and mTOR, respectively

GNE-477 is a potent dual PI3K/mTOR inhibitor. Owing to the common association with oncogenic malignancies, the PI3K/AKT/mTOR signaling pathway is regarded as an attractive area of research for the identification of oral small molecule inhibitors.

In vitro: GNE-477 was found to inhibit PI3K-α, β, δ, and γ with IC50s of 4, 86, 6, and 15 nM, respectively. [1].

In vivo: A direct comparison of GNE-477 with its des-methyl analog revealed that the trend of reduced in vivo clearance in rats is also observed in dogs and mice. The clearance improvement was significant in dogs where the des-methyl analog was cleared at two-thirds the rate of hepatic blood flow while GNE-477 had low clearance. In an study evaluating the tumor growth inhibition of a PC3 tumor xenograft10 over 14 days, stasis was achieved at a 20 mg/kg QD dose of GNE-477 and significant inhibition was found with doses as low as 1 mg/kg QD. GNE-477 was generally well tolerated during this study as shown by acceptable levels of weight loss comparable to that in the vehicle cohort [1].

Clinical trial: N/A

Reference:
[1] Heffron TP,Berry M,Castanedo G,Chang C,Chuckowree I,Dotson J,Folkes A,Gunzner J,Lesnick JD,Lewis C,Mathieu S,Nonomiya J,Olivero A,Pang J,Peterson D,Salphati L,Sampath D,Sideris S,Sutherlin DP,Tsui V,Wan NC,Wang S,Wong S,Zhu BY.  Identification of GNE-477, a potent and efficacious dual PI3K/mTOR inhibitor. Bioorg Med Chem Lett.2010 Apr 15;20(8):2408-11.

Featured Products
New Products


References on GNE-477

Identification of GNE-477, a potent and efficacious dual PI3K/mTOR inhibitor.[Pubmed:20346656]

Bioorg Med Chem Lett. 2010 Apr 15;20(8):2408-11.

Efforts to identify potent small molecule inhibitors of PI3 kinase and mTOR led to the discovery of the exceptionally potent 6-aryl morpholino thienopyrimidine 6. In an effort to reduce the melting point in analogs of 6, the thienopyrimidine was modified by the addition of a methyl group to disrupt planarity. This modification resulted in a general improvement in in vivo clearance. This discovery led to the identification of GNE-477 (8), a potent and efficacious dual PI3K/mTOR inhibitor.

Description

GNE-477 is a potent and efficacious dual PI3K (IC50=4 nM)/mTOR(Ki=21 nM) inhibitor.
