Picropodophyllotoxin

CAS# 17434-18-3

Picropodophyllotoxin

Catalog No. BCN2585----Order now to get a substantial discount!

Product Name & Size Price Stock
Picropodophyllotoxin: 5mg Please Inquire In Stock
Picropodophyllotoxin: 10mg Please Inquire In Stock
Picropodophyllotoxin: 20mg Please Inquire Please Inquire
Picropodophyllotoxin: 50mg Please Inquire Please Inquire
Picropodophyllotoxin: 100mg Please Inquire Please Inquire
Picropodophyllotoxin: 200mg Please Inquire Please Inquire
Picropodophyllotoxin: 500mg Please Inquire Please Inquire
Picropodophyllotoxin: 1000mg Please Inquire Please Inquire
Related Products

Quality Control of Picropodophyllotoxin

Number of papers citing our products

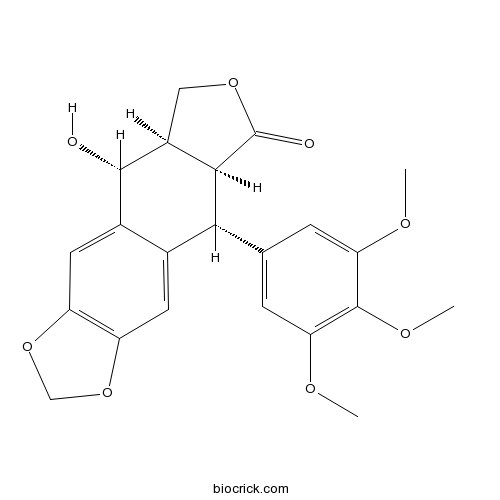

Chemical structure

Picropodophyllotoxin

3D structure

Chemical Properties of Picropodophyllotoxin

Cas No. 17434-18-3 SDF Download SDF
PubChem ID 72435 Appearance Cryst.
Formula C22H22O8 M.Wt 414.4
Type of Compound Lignans Storage Desiccate at -20°C
Synonyms AXL1717;Picropodophyllin;477-47-4
Solubility Soluble in Chloroform,Dichloromethane,Ethyl Acetate,DMSO,Acetone,etc.
Chemical Name (5R,5aR,8aS,9R)-5-hydroxy-9-(3,4,5-trimethoxyphenyl)-5a,6,8a,9-tetrahydro-5H-[2]benzofuro[5,6-f][1,3]benzodioxol-8-one
SMILES COC1=CC(=CC(=C1OC)OC)C2C3C(COC3=O)C(C4=CC5=C(C=C24)OCO5)O
Standard InChIKey YJGVMLPVUAXIQN-HAEOHBJNSA-N
Standard InChI InChI=1S/C22H22O8/c1-25-16-4-10(5-17(26-2)21(16)27-3)18-11-6-14-15(30-9-29-14)7-12(11)20(23)13-8-28-22(24)19(13)18/h4-7,13,18-20,23H,8-9H2,1-3H3/t13-,18+,19+,20-/m0/s1
General tips For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months.
We recommend that you prepare and use the solution on the same day. However, if the test schedule requires, the stock solutions can be prepared in advance, and the stock solution must be sealed and stored below -20℃. In general, the stock solution can be kept for several months.
Before use, we recommend that you leave the vial at room temperature for at least an hour before opening it.
About Packaging 1. The packaging of the product may be reversed during transportation, cause the high purity compounds to adhere to the neck or cap of the vial.Take the vail out of its packaging and shake gently until the compounds fall to the bottom of the vial.
2. For liquid products, please centrifuge at 500xg to gather the liquid to the bottom of the vial.
3. Try to avoid loss or contamination during the experiment.
Shipping Condition Packaging according to customer requirements(5mg, 10mg, 20mg and more). Ship via FedEx, DHL, UPS, EMS or other couriers with RT, or blue ice upon request.

Source of Picropodophyllotoxin

The rhizomes of Dysosma versipellis (Hance.) M.Cheng

Biological Activity of Picropodophyllotoxin

DescriptionPicropodophyllotoxin shows highly antifeeding and toxic activities against the 3rd-instar larve of Mythimna separate W.and the 4th-instar larvae of Pieris rapae L.and the 3rd-instar larve of Plutella xylostella L.
In vitro

Study on 6 insecticidal podophyllotoxin compounds from the berries of Sabina vulgaris Ant.[Reference: WebLink]

《Journal of Northwest A & F University(Natural Science Edition)》 2007-09

In order to isolate other insecticidal podophyllotoxin compounds from the berries of Sabina vulgaris Ant.,six podophyllotoxin compounds were isolated by tracing with insecticidal activity.They were identified as acetyl Picropodophyllotoxin,deoxyPicropodophyllotoxin,acetyl epipodophyllotoxin,podophyllotoxin,deoxypodophyllotoxin and Picropodophyllotoxin.
METHODS AND RESULTS:
The antifeeding activities against the 3rd-instar larve of Mythimna separate W.and the toxic activities against the 4th-instar larvae of Pieris rapae L.and the 3rd-instar larve of Plutella xylostella L.were tested by leaf-disk method and leaf-dipping method,respectively.The bioassay results indicated that all these compounds showed highly antifeeding and toxic activities against the 3 tested insects.Podophyllotoxin and deoxypodophyllotoxin were the two with the highest insecticidal activities among the six,while Picropodophyllotoxin was the lowest.Besides,acetyl Picropodophyllotoxin,deoxyPicropodophyllotoxin,acetyl epipodophyllotoxin and Picropodophyllotoxin were insecticidal compounds firstly reported from S.vulgaris.

Protocol of Picropodophyllotoxin

Structure Identification
Bioprocess Biosyst Eng. 2009 Aug;32(5):663-71.

Novel biotransformation process of podophyllotoxin to produce podophyllic acid and picropodophyllotoxin by Pseudomonas aeruginosa CCTCC AB93066. Part I: process development.[Pubmed: 19115065]

A novel biotransformation process of podophyllotoxin (1) to produce Picropodophyllotoxin (2) and podophyllic acid (3) was developed in this work.
METHODS AND RESULTS:
Eight bacteria which could modify the structure of podophyllotoxin were screened out from the tested fourteen bacteria. The highest conversion of podophyllotoxin (i.e., 70.2 +/- 8.0%) was obtained when Pseudomonas aeruginosa CCTCC AB93066 was used as biocatalyst, so P. aeruginosa was selected as a typical biocatalyst in the following study. Product (2) and (3) were separated through D312 macroporous resin and sephadex LH-20 gel column chromatograph. On the basis of (1)H NMR, (13)C NMR, ESI-MS and Elemental Analysis, product (2) and (3) were identified as Picropodophyllotoxin (2) and podophyllic acid (3), respectively.
CONCLUSIONS:
This suggested the site-specific isomerization and hydrolization of podophyllotoxin occurred during its biotransformation process by P. aeruginosa. For the first time, podophyllotoxin was biotransformed into its hydrolytic derivate (i.e., podophyllic acid).

Picropodophyllotoxin Dilution Calculator

Concentration (start)
x
Volume (start)
=
Concentration (final)
x
Volume (final)



C1
V1
C2
V2

calculate

Picropodophyllotoxin Molarity Calculator

Mass
=
Concentration
x
Volume
x
MW*



g/mol

calculate

Preparing Stock Solutions of Picropodophyllotoxin

1 mg 5 mg 10 mg 20 mg 25 mg
1 mM 2.4131 mL 12.0656 mL 24.1313 mL 48.2625 mL 60.3282 mL
5 mM 0.4826 mL 2.4131 mL 4.8263 mL 9.6525 mL 12.0656 mL
10 mM 0.2413 mL 1.2066 mL 2.4131 mL 4.8263 mL 6.0328 mL
50 mM 0.0483 mL 0.2413 mL 0.4826 mL 0.9653 mL 1.2066 mL
100 mM 0.0241 mL 0.1207 mL 0.2413 mL 0.4826 mL 0.6033 mL
* Note: If you are in the process of experiment, it's necessary to make the dilution ratios of the samples. The dilution data above is only for reference. Normally, it's can get a better solubility within lower of Concentrations.

Organizitions Citing Our Products recently





Calcutta University

University of Minnesota

University of Maryland School of Medicine

University of Illinois at Chicago

The Ohio State University

University of Zurich

Harvard University

Colorado State University

Auburn University

Yale University

Worcester Polytechnic Institute

Washington State University

Stanford University

University of Leipzig

Universidade da Beira Interior

The Institute of Cancer Research

Heidelberg University

University of Amsterdam

University of Auckland
TsingHua University
TsingHua University
The University of Michigan
The University of Michigan
Miami University
Miami University
DRURY University
DRURY University
Jilin University
Jilin University
Fudan University
Fudan University
Wuhan University
Wuhan University
Sun Yat-sen University
Sun Yat-sen University
Universite de Paris
Universite de Paris
Deemed University
Deemed University
Auckland University
Auckland University
The University of Tokyo
The University of Tokyo
Korea University
Korea University

Background on Picropodophyllotoxin

AXL1717 (Picropodophyllotoxin) is a selective inhibitor of IGF-1R with IC50 value rangs from 0.24-0.33 μM [1].
IGF-1R (type 1 insulin-like growth factor receptor) is a transmembrane receptor that activated by IGF-1 and plays an important role in cell growth and anabolic effects in adults. It has been reported that over-expression of IGF-1R is correlated with a variety of cancers and its inhibitors has been revealed to anti-cancer in clinical study [1] [2].
AXL 1717 is a potent IGF-1RTK inhibitor and has ability to inhibit tumor cells combined with HDAC inhibitor LBH589. When tested with 4 human myeloma cells (RPMI 8226, Karpas707, LP-1, and OPM-2) and 1 murine cell (5T33MM), AXL1717 treatment markedly decreased cell survival in a dose-dependent manner, arrested cell cycle in G2-M phase and induced cell apoptosis by inhibiting IGF-1RTK [1]. In four colon carcinoma cell lines (HT-29, HCT-116, DLD-1 and CaCO-2), AXL1717 treatment showed high ability to inhibit cell proliferation and migration in a dose-dependent manner [2].
In mouse model with 5TMM subcutaneous xenograft, administration of AXL 1717 (1.5 mg/d) resulted in a prolonged survival in combination with LBH (2.5 mg/kg/d) compared with control group [1].
AXL1717 has been tested to treat non-small cell lung cancer patients in a Phase I/II clinically [3].
References:
[1].Lemaire, M., et al., The HDAC inhibitor LBH589 enhances the antimyeloma effects of the IGF-1RTK inhibitor picropodophyllin. Clin Cancer Res, 2012. 18(8): p. 2230-9.
[2].Feng, X., et al., Multiple antitumor effects of picropodophyllin in colon carcinoma cell lines: clinical implications. Int J Oncol, 2012. 40(4): p. 1251-8.
[3].Ekman, S., et al., Clinical Phase I study with an Insulin-like Growth Factor-1 receptor inhibitor: experiences in patients with squamous non-small cell lung carcinoma. Acta Oncol, 2011. 50(3): p. 441-7.

Featured Products
New Products


References on Picropodophyllotoxin

Novel biotransformation process of podophyllotoxin to produce podophyllic acid and picropodophyllotoxin by Pseudomonas aeruginosa CCTCC AB93066. Part I: process development.[Pubmed:19115065]

Bioprocess Biosyst Eng. 2009 Aug;32(5):663-71.

A novel biotransformation process of podophyllotoxin (1) to produce Picropodophyllotoxin (2) and podophyllic acid (3) was developed in this work. Eight bacteria which could modify the structure of podophyllotoxin were screened out from the tested fourteen bacteria. The highest conversion of podophyllotoxin (i.e., 70.2 +/- 8.0%) was obtained when Pseudomonas aeruginosa CCTCC AB93066 was used as biocatalyst, so P. aeruginosa was selected as a typical biocatalyst in the following study. Product (2) and (3) were separated through D312 macroporous resin and sephadex LH-20 gel column chromatograph. On the basis of (1)H NMR, (13)C NMR, ESI-MS and Elemental Analysis, product (2) and (3) were identified as Picropodophyllotoxin (2) and podophyllic acid (3), respectively. This suggested the site-specific isomerization and hydrolization of podophyllotoxin occurred during its biotransformation process by P. aeruginosa. For the first time, podophyllotoxin was biotransformed into its hydrolytic derivate (i.e., podophyllic acid).

Phase II randomized study of the IGF-1R pathway modulator AXL1717 compared to docetaxel in patients with previously treated, locally advanced or metastatic non-small cell lung cancer.[Pubmed:27882820]

Acta Oncol. 2017 Mar;56(3):441-447.

BACKGROUND: The primary objective of this study was to compare the progression-free survival (PFS) at 12 weeks between patients treated with IGF-1R pathway modulator AXL1717 (AXL) and patients treated with docetaxel (DCT). MATERIAL AND METHODS: The study was conducted at 19 study centers in five countries. A total of 99 patients with previously treated, locally advanced or metastatic non-small cell lung cancer (NSCLC) of the squamous cell carcinoma (SCC) or adenocarcinoma (AC) subtypes in need of additional treatment were randomized and treated with either 300 or 400 mg of AXL as daily BID treatment (58 patients) or DCT given as 75 mg/m(2) in three-week cycles (41 patients) as monotherapy in a 3:2 ratio for each NSCLC subtype. Patients were treated in the primary study treatment period for a maximum of four treatment cycles. RESULTS: The 12-week PFS rate, median PFS and overall survival (OS), as well Kaplan-Meier hazard ratio for PFS and OS, did not show any statistically significant differences between the treatment groups. For the primary endpoint, the AXL group had a lower percentage of patients (25.9%) who were progression-free at Week 12 as compared to the DCT group (39.0%), although the difference was not statistically significant. The most notable difference in the incidence of treatment emergent adverse effects (TEAEs) was the lower incidence of treatment-related grade 3/4 neutropenia in patients treated with AXL. CONCLUSION: These results suggest neither of the treatments to be superior of the other when treating locally advanced or metastatic NSCLC. Considering the lower incidence of grade 3/4 neutropenia in the AXL group this treatment warrants further research.

A phase I pilot study of the insulin-like growth factor 1 receptor pathway modulator AXL1717 in combination with gemcitabine HCl and carboplatin in previously untreated, locally advanced, or metastatic non-small cell lung cancer.[Pubmed:25794491]

Med Oncol. 2015 Apr;32(4):129.

AXL1717 is an orally bioavailable IGF-1R pathway modulator that has been shown to have anti-tumoral effects. The objectives of the present study were to define maximum tolerated dose and the recommended phase II dose (RPTD) of AXL1717 in combination with gemcitabine HCl and carboplatin in non-small cell lung cancer (NSCLC). Patients with previously untreated, locally advanced, or metastatic NSCLC (squamous cell cancer or adenocarcinoma) in good performance status and with preserved major organ functions were enrolled in the study. The study was an open-label phase I study with planned cohorts of three patients per dose level of AXL1717 (215, 290, and 390 mg BID). In total, 12 patients were enrolled in the study, and of these, two were prematurely excluded. AXL1717 was administered at one dose level, 215 mg BID. A total number of 81 unique adverse events were reported. Bone marrow toxicity was reported in 10 out of 12 patients, and this organ class showed the largest number of related events. AXL1717 in combination with gemcitabine HCl and carboplatin is a possible treatment approach in previously untreated, locally advanced, or metastatic non-small cell lung cancer. However, due to the bone marrow toxicity profile shown in the present study, further dose increases of AXL1717 above 215 mg BID will probably not be feasible. Therefore, 215 mg BID constitutes maximum tolerated dose and RPTD.
