WAY 316606

sFRP-1 inhibitor CAS# 915759-45-4

WAY 316606

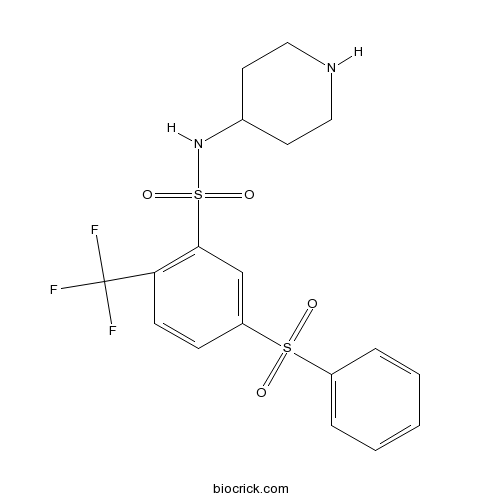

2D Structure

Catalog No. BCC2052----Order now to get a substantial discount!

Product Name & Size Price Stock
WAY 316606: 5mg $345 In Stock
WAY 316606: 10mg Please Inquire In Stock
WAY 316606: 20mg Please Inquire Please Inquire
WAY 316606: 50mg Please Inquire Please Inquire
WAY 316606: 100mg Please Inquire Please Inquire
WAY 316606: 200mg Please Inquire Please Inquire
WAY 316606: 500mg Please Inquire Please Inquire
WAY 316606: 1000mg Please Inquire Please Inquire
Related Products
  • T 98475

    Catalog No.:BCC7395
    CAS No.:199119-18-1
  • AG 045572

    Catalog No.:BCC7464
    CAS No.:263847-55-8

Quality Control of WAY 316606

3D structure

Package In Stock

WAY 316606

Number of papers citing our products

Chemical Properties of WAY 316606

Cas No. 915759-45-4 SDF Download SDF
PubChem ID 16727102 Appearance Powder
Formula C18H19F3N2O4S2 M.Wt 448.48
Type of Compound N/A Storage Desiccate at -20°C
Solubility DMSO : ≥ 100 mg/mL (222.98 mM)
*"≥" means soluble, but saturation unknown.
Chemical Name 5-(benzenesulfonyl)-N-piperidin-4-yl-2-(trifluoromethyl)benzenesulfonamide
SMILES C1CNCCC1NS(=O)(=O)C2=C(C=CC(=C2)S(=O)(=O)C3=CC=CC=C3)C(F)(F)F
Standard InChIKey ITBGJNVZJBVPLJ-UHFFFAOYSA-N
Standard InChI InChI=1S/C18H19F3N2O4S2/c19-18(20,21)16-7-6-15(28(24,25)14-4-2-1-3-5-14)12-17(16)29(26,27)23-13-8-10-22-11-9-13/h1-7,12-13,22-23H,8-11H2
General tips For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months.
We recommend that you prepare and use the solution on the same day. However, if the test schedule requires, the stock solutions can be prepared in advance, and the stock solution must be sealed and stored below -20℃. In general, the stock solution can be kept for several months.
Before use, we recommend that you leave the vial at room temperature for at least an hour before opening it.
About Packaging 1. The packaging of the product may be reversed during transportation, cause the high purity compounds to adhere to the neck or cap of the vial.Take the vail out of its packaging and shake gently until the compounds fall to the bottom of the vial.
2. For liquid products, please centrifuge at 500xg to gather the liquid to the bottom of the vial.
3. Try to avoid loss or contamination during the experiment.
Shipping Condition Packaging according to customer requirements(5mg, 10mg, 20mg and more). Ship via FedEx, DHL, UPS, EMS or other couriers with RT, or blue ice upon request.

Biological Activity of WAY 316606

DescriptionWAY 316606 is an inhibitor of the secreted protein sFRP-1, an endogenous antagonist of the secreted glycoprotein Wnt. The affinity of WAY-316606 for sFRP-1 is determined using the FP binding assay with IC50 of 0.5 μM.In Vitro:The EC50 of WAY-316606 for Wnt-Luciferase Activity from U2-OS Cells is 0.65 μM[1]. WAY-316606 binds to secreted frizzled-related protein (sFRP)-1 inhibitor with a KD of 0.08 μM and inhibits sFRP-1 with an EC50 of 0.65 μM. WAY-316606 also binds to sFRP-2, albeit over 10 times weaker with a KD of 1 μM. Using a fluorescence polarization binding assay that employs a fluorescent probe compound and purified human sFRP-1 protein in a competitive-binding format, the IC50 for WAY-316606 is 0.5 μM[2].In Vivo:WAY-316606 increases bone formation when tested in a neonatal murine calvarial assay. WAY-316606 increases total bone area up to 60% in a dose-dependent manner with an EC50 of about 1 nM. WAY-316606 has good aqueous solubility, moderate to low inhibition of cytochrome p450 isozymes (3A4, 2D6, 2C9) and good stability in rat and human liver microsomes (t1/2>60 min in each species). In female Sprague-Dawley rats, WAY-316606 exhibits high plasma clearance (77 mL/min/kg, greater than hepatic blood flow) following a single intravenous bolus dose (2 mg/kg), which results in a rapid decline of drug exposure in the plasma despite the route of administration[2].

References:
[1]. Moore, WJ, et al. Modulation of Wnt Signaling Through Inhibition of Secreted Frizzled-Related Protein I (sFRP-1) with N-Substituted Piperidinyl Diphenylsulfonyl Sulfonamides. Journal of Medicinal Chemistry (2009), 52(1), 105-116. [2]. Bodine PV, et al. A small molecule inhibitor of the Wnt antagonist secreted frizzled-related protein-1 stimulates bone formation. Bone. 2009 Jun;44(6):1063-8.

Protocol

Kinase Assay [2]
WAY-316606 binding to purified sFRP is determined by spectroscopy methods. The sFRP-1 or -2 stock solutions are diluted to 1 μM in a buffered solution and the initial fluorescence is measured. Increasing concentrations of WAY-316606 (0 to 50 μM) are added to the protein in the cuvette and incubated for 5 min prior to assessing fluorescence intensity using a Fluoromax-2 fluorometer. In control experiments, the DMSO (vehicle control)-matched buffer solution is used. Fluorescence spectra are scanned in the ratio mode (S/R, signal/reference) to compensate for variations in lamp output as a function of wavelength. Fluorescence changes are fitted to a quadratic equation to obtain apparent dissociation constants[2].

Cell Assay [1]
U2OS bone cells are infected with recombinant adenovirus 5 (Ad5)−WNT3 at a multiplicity of infection (MOI) of 2, followed by infection with Ad5-sFRP-1 and Ad5-16xTCF-luciferase, each at an MOI of 10. Four hours after infection, the cells are frozen in sterile cryogenic vials at a cell density of 9×106 cells/mL and stored in a −150°C freezer. For the assay, a vial of frozen cells is thawed, and the cells are resuspended in plating medium [phenol red-free RPMI 1640 medium containing 5% fetal calf serum, 2 mM GlutaMAX-l, and 1% (v/v) penicillin-streptomycin] to a final cell density of 1.5×105 cells/mL. The resuspended cells are then plated in 96-well tissue culture treated plates at a volume of 100 μL of cell suspension/well (i.e., 1.5×104 cells/well). The plates are incubated at 37°C inside a 5% CO2/ 95% humidified air incubator for 5 h or until the cells have attached and started to spread. Prior to the addition of WAY-316606, the medium is replaced with 50 μL/well of phenol red-free RPMI 1640 containing 10% fetal calf serum, 2 mM GlutaMAX-l, and 1% (v/v) penicillin-streptomycin. WAY-316606, or vehicle (typically DMSO), diluted in phenol red-free RPMI 1640 containing 2 mM GlutaMAX-l, and l % (v/v) penicillin-streptomycin are then added to the wells in replicates of 4 wells/dilution and the plates are incubated at 37°C overnight. Dose−response experiments are performed with the compounds in 2-fold serial dilutions from 10000−4.9 nM. After the overnight incubation, the cells are washed twice with 150 uL/well of PBS w/o calcium or magnesium and lysed with 50 μL/well of 1× cell culture lysis reagent on a shaker at room temperature for 30 min. Aliquots of the cell lysates (30 μL) are transferred to 96-well luminometer plates, and the luciferase activity is measured in a MicroLumat PLUS luminometer using 100 μL/well of luciferase substrate.

References:
[1]. Moore, WJ, et al. Modulation of Wnt Signaling Through Inhibition of Secreted Frizzled-Related Protein I (sFRP-1) with N-Substituted Piperidinyl Diphenylsulfonyl Sulfonamides. Journal of Medicinal Chemistry (2009), 52(1), 105-116. [2]. Bodine PV, et al. A small molecule inhibitor of the Wnt antagonist secreted frizzled-related protein-1 stimulates bone formation. Bone. 2009 Jun;44(6):1063-8.

WAY 316606 Dilution Calculator

Concentration (start)
x
Volume (start)
=
Concentration (final)
x
Volume (final)



C1
V1
C2
V2

calculate

WAY 316606 Molarity Calculator

Mass
=
Concentration
x
Volume
x
MW*



g/mol

calculate

Preparing Stock Solutions of WAY 316606

1 mg 5 mg 10 mg 20 mg 25 mg
1 mM 2.2298 mL 11.1488 mL 22.2975 mL 44.5951 mL 55.7438 mL
5 mM 0.446 mL 2.2298 mL 4.4595 mL 8.919 mL 11.1488 mL
10 mM 0.223 mL 1.1149 mL 2.2298 mL 4.4595 mL 5.5744 mL
50 mM 0.0446 mL 0.223 mL 0.446 mL 0.8919 mL 1.1149 mL
100 mM 0.0223 mL 0.1115 mL 0.223 mL 0.446 mL 0.5574 mL
* Note: If you are in the process of experiment, it's necessary to make the dilution ratios of the samples. The dilution data above is only for reference. Normally, it's can get a better solubility within lower of Concentrations.

Organizitions Citing Our Products recently





Calcutta University

University of Minnesota

University of Maryland School of Medicine

University of Illinois at Chicago

The Ohio State University

University of Zurich

Harvard University

Colorado State University

Auburn University

Yale University

Worcester Polytechnic Institute

Washington State University

Stanford University

University of Leipzig

Universidade da Beira Interior

The Institute of Cancer Research

Heidelberg University

University of Amsterdam

University of Auckland
TsingHua University
TsingHua University
The University of Michigan
The University of Michigan
Miami University
Miami University
DRURY University
DRURY University
Jilin University
Jilin University
Fudan University
Fudan University
Wuhan University
Wuhan University
Sun Yat-sen University
Sun Yat-sen University
Universite de Paris
Universite de Paris
Deemed University
Deemed University
Auckland University
Auckland University
The University of Tokyo
The University of Tokyo
Korea University
Korea University

Background on WAY 316606

WAY 316606 is a selective small-molecule inhibitor of secreted frizzled-related protein-1 (sFRP-1) with EC50 value of 0.65 μM [1].
The Wnt signaling has been proved to be a drug target of treatment for metabolic bone diseases such as osteoporosis. The studies found that loss-of-function mutations of Wnt antagonists caused increased bone formation and deletion of the Wnt antagonist sFRP-1 resulted in increased trabecular bone formation in aged mice. Thus small-molecule inhibitors of Wnt antagonist (sFRP-1) have been discovered and developed. WAY 316606 was screened out from a library of over 440,000 compounds by the cell-based assay measuring activation of Wnt signaling. It bound to sFRP-1 preferentially (Kd value of 0.08 μM) and inhibited the negative regulation of Wnt caused by sFRP-1. WAY 316606 has been proved to promote bone formation in an organ culture assay [1].
WAY 316606 is a selective inhibitor of sFRP-1. It bound to sFRP-2 with 10-fold weaker affinity (Kd value of 1 μM). In a fluorescence polarization binding assay, WAY 316606 inhibited sFRP-1 with IC50 value of 0.5 μM. Although sequence of sFRP-1, -2 and -5 showed high identity, WAY 316606 selectively inhibited sFRP-1 against other two proteins. In the osteosarcoma U2-OS cell line used in a cell-based transient transfection and luciferase reporter assay, treatment of WAY 316606 dose-dependently increased Wnt-signaling with EC50 value of 0.65 μM. In an ex vivo assay using neonatal murine calvarium, treatment of WAY 316606 dose-dependently enhanced the osteoblast activity and stimulated bone formation up to 60% with EC50 value of 1 nM [1 and 2].
Although WAY 316606 had good aqueous solubility and good stability, WAY 316606 exerted high plasma clearance (77 mL/min/kg) in rats, which suppressed sustained exposure and limited the compound's advancement as an orally administered anabolic bone agent [1].
References:
[1] Bodine P V N, Stauffer B, Ponce-de-Leon H, et al. A small molecule inhibitor of the Wnt antagonist secreted frizzled-related protein-1 stimulates bone formation. Bone, 2009, 44(6): 1063-1068.
[2] Moore W J, Kern J C, Bhat R, et al. Modulation of Wnt Signaling Through Inhibition of Secreted Frizzled-Related Protein I (sFRP-1) with N-Substituted Piperidinyl Diphenylsulfonyl Sulfonamides†. Journal of medicinal chemistry, 2008, 52(1): 105-116.

Featured Products
New Products


References on WAY 316606

The problem of choice: From the voluntary way to Affordable Care Act health insurance exchanges.[Pubmed:28371627]

Soc Sci Med. 2017 May;181:34-42.

This article takes a genealogical and ethnographic approach to the problem of choice, arguing that what choice means has been reworked several times since health insurance first figured prominently in national debates about health reform. Whereas voluntary choice of doctor and hospital used to be framed as an American right, contemporary choice rhetoric includes consumer choice of insurance plan. Understanding who has deployed choice rhetoric and to what ends helps explain how offering choices has become the common sense justification for defending and preserving the exclusionary health care system in the United States. Four case studies derived from 180 enrollment observations at the Rhode Island health insurance exchange conducted from March 2014-January 2017 and interviews with enrollees show how choice is experienced in this latest iteration of health reform. The Affordable Care Act (ACA) of 2010 created new pathways to insurance coverage in the United States. Insurance exchanges were supposed to unleash the power of consumer decision-making through marketplaces where health plans compete on quality, coverage, and price. Consumers, however, contended with confusing insurance terminology and difficult to navigate websites. The ethnography shows that consumers experienced choice as confusing and overwhelming and did not feel "in charge" of their decisions. Instead, unstable employment, changes in income, existing health needs, and bureaucratic barriers shaped their "choices."

DNA Three-Way Junction for Differentiation of Single-Nucleotide Polymorphisms with Fluorescent Copper Nanoparticles.[Pubmed:28370648]

Chemistry. 2017 May 23;23(29):6979-6982.

A label- and enzyme-free fluorescent sensor for the detection of single-nucleotide polymorphisms (SNPs) at room temperature is proposed, using new copper nanoparticles (CuNPs) as fluorescent reporters. The CuNPs were constructed by using a DNA three-way junction (3WJ) template. In this assay, two complementary adenine/thymine-rich probes can hybridize with the wild-type target simultaneously to construct a 3WJ structure, serving as an efficient scaffold for the generation of CuNPs. However, the CuNPs produce weak fluorescence when the probes bind with a mutant-type target. SNPs can be identified by the difference in fluorescence intensity of the CuNPs. This SNPs detection strategy is straightforward, cost-effective, and avoids the complicated procedures of labeling or enzymatic reactions. The fluorescent sensor is versatile and can be applied to all types of mutation because the probes are programmable. Moreover, the sensor exhibits good detection performance in biological samples.

Description

WAY 316606 is an inhibitor of the secreted protein sFRP-1, an endogenous antagonist of the secreted glycoprotein Wnt. The affinity of WAY-316606 for sFRP-1 is determined using the FP binding assay with IC50 of 0.5 μM.
