FIIN-2Irreversible inhibitor of FGFR CAS# 1633044-56-0 |
- AP26113
Catalog No.:BCC1069
CAS No.:1197958-12-5
- AG-1478
Catalog No.:BCC3717
CAS No.:153436-53-4
- Compound 56
Catalog No.:BCC3615
CAS No.:171745-13-4
- Lapatinib
Catalog No.:BCC3633
CAS No.:231277-92-2
Quality Control & MSDS
Number of papers citing our products

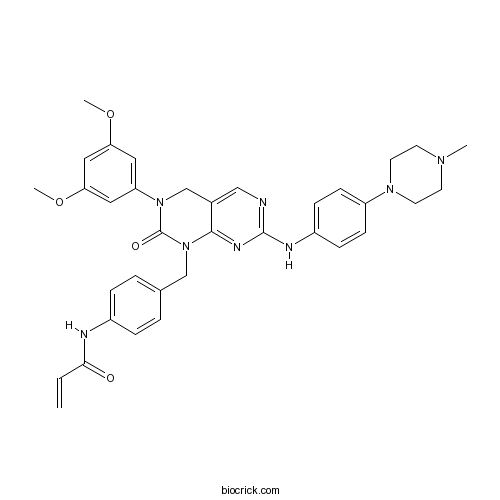

Chemical structure
3D structure
Cas No. | 1633044-56-0 | SDF | Download SDF |
PubChem ID | 91825767 | Appearance | Powder |
Formula | C35H38N8O4 | M.Wt | 634.73 |
Type of Compound | N/A | Storage | Desiccate at -20°C |
Solubility | DMSO : ≥ 30 mg/mL (47.26 mM) *"≥" means soluble, but saturation unknown. | ||
Chemical Name | N-[4-[[3-(3,5-dimethoxyphenyl)-7-[4-(4-methylpiperazin-1-yl)anilino]-2-oxo-4H-pyrimido[4,5-d]pyrimidin-1-yl]methyl]phenyl]prop-2-enamide | ||
SMILES | CN1CCN(CC1)C2=CC=C(C=C2)NC3=NC=C4CN(C(=O)N(C4=N3)CC5=CC=C(C=C5)NC(=O)C=C)C6=CC(=CC(=C6)OC)OC | ||
Standard InChIKey | DVBPRWJMHURKHP-UHFFFAOYSA-N | ||
Standard InChI | InChI=1S/C35H38N8O4/c1-5-32(44)37-26-8-6-24(7-9-26)22-43-33-25(23-42(35(43)45)29-18-30(46-3)20-31(19-29)47-4)21-36-34(39-33)38-27-10-12-28(13-11-27)41-16-14-40(2)15-17-41/h5-13,18-21H,1,14-17,22-23H2,2-4H3,(H,37,44)(H,36,38,39) | ||
General tips | For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months. We recommend that you prepare and use the solution on the same day. However, if the test schedule requires, the stock solutions can be prepared in advance, and the stock solution must be sealed and stored below -20℃. In general, the stock solution can be kept for several months. Before use, we recommend that you leave the vial at room temperature for at least an hour before opening it. |
||
About Packaging | 1. The packaging of the product may be reversed during transportation, cause the high purity compounds to adhere to the neck or cap of the vial.Take the vail out of its packaging and shake gently until the compounds fall to the bottom of the vial. 2. For liquid products, please centrifuge at 500xg to gather the liquid to the bottom of the vial. 3. Try to avoid loss or contamination during the experiment. |
||
Shipping Condition | Packaging according to customer requirements(5mg, 10mg, 20mg and more). Ship via FedEx, DHL, UPS, EMS or other couriers with RT, or blue ice upon request. |
Description | FIIN-2 is an irreversible inhibitor of FGFR with an IC50 of 3.1, 4.3, 27, and 45 nM for FGFR1, FGFR2, FGFR3 and FGFR4, respectively.In Vitro:FIIN-2 potently inhibits WT FGFRs (EC50s in the 1- to 93-nM range) and the gatekeeper mutant of FGFR2 (EC50 of 58 nM). FIIN-2 also moderately inhibits EGFR, with an IC50 of 204 nM. FIIN-2 inhibits proliferation of FGFR1-4 Ba/F3 cells with EC50s in the single- to double-digit nanomolar range and are especially potent against FGFR2, with EC50s in the 1-nM range. FIIN-2 shows good potency against gatekeeper mutant V564F[1].In Vivo:Treatment of fish in the embryonic state with either FIIN-2 causes defects to the posterior mesoderm similar to the phenotypes reported following genetic knockdown of FGFR or treatment with other reported FGFR inhibitors. FIIN-2 causes mild or severe phenotypes to the tail morphogenesis in all treated embryonic zebrafish[1]. References: |
FIIN-2 Dilution Calculator
FIIN-2 Molarity Calculator
1 mg | 5 mg | 10 mg | 20 mg | 25 mg | |
1 mM | 1.5755 mL | 7.8774 mL | 15.7547 mL | 31.5095 mL | 39.3868 mL |
5 mM | 0.3151 mL | 1.5755 mL | 3.1509 mL | 6.3019 mL | 7.8774 mL |
10 mM | 0.1575 mL | 0.7877 mL | 1.5755 mL | 3.1509 mL | 3.9387 mL |
50 mM | 0.0315 mL | 0.1575 mL | 0.3151 mL | 0.6302 mL | 0.7877 mL |
100 mM | 0.0158 mL | 0.0788 mL | 0.1575 mL | 0.3151 mL | 0.3939 mL |
* Note: If you are in the process of experiment, it's necessary to make the dilution ratios of the samples. The dilution data above is only for reference. Normally, it's can get a better solubility within lower of Concentrations. |
Calcutta University
University of Minnesota
University of Maryland School of Medicine
University of Illinois at Chicago
The Ohio State University
University of Zurich
Harvard University
Colorado State University
Auburn University
Yale University
Worcester Polytechnic Institute
Washington State University
Stanford University
University of Leipzig
Universidade da Beira Interior
The Institute of Cancer Research
Heidelberg University
University of Amsterdam
University of Auckland
TsingHua University
The University of Michigan
Miami University
DRURY University
Jilin University
Fudan University
Wuhan University
Sun Yat-sen University
Universite de Paris
Deemed University
Auckland University
The University of Tokyo
Korea University
FIIN-2 is an irreversible inhibitor of FGFR1–4 with IC50 values of 3.1, 4.3, 27, and 45 nM, respectively. FIIN-2 also moderately inhibited EGFR, with an IC50 of 204 nM. The Cys491 of FGFR2 is the primary labeled site for FIIN-2 binding [1].
FIIN-2 is the first class of inhibitors that can potently inhibit the proliferation of cells dependent upon the gatekeeper mutants of FGFR1 or FGFR2. The co-crystal structure of FGFR4 with FIIN-2 was reported, which unexpectedly exhibits a “DFG-out” covalent binding mode. FIIN-2 maintains the pyrimido[4,5-d] pyrimidinone core of FIIN-1 but removes the two chlorine atoms, which are crucial for FIIN-1’s potency against FGFR. FIIN-2 maintains the ability to form a covalent bond with the P-loop cysteine but alter the selectivity profile versus other kinases. Compared with FIIN-1, FIIN-2 displayed strong binding to FGFRs and exhibited good overall kinase selectivity. FIIN-2 exhibited much less affinity for EGFR, but FIIN-3 potently bound to WT EGFR and to a subset of EGFR mutants. [1]
FIIN-2 inhibited proliferation of FGFR1-4 Ba/F3 cells with EC50s in the nanomolar range and were especially potent against FGFR2, with EC50s in the 1-nM range. FIIN-2 also inhibited the FGFR2 V564M gatekeeper mutant Ba/F3 cells, with EC50s of 58 nM, whereas FIIN-1 and BGJ398 had EC50s of over 1.0 μM against this mutant. FIIN-2 showed good potency against gatekeeper mutant V564F. In contrast, FIIN-2 was fourfold less potent (EC50 of 506 nM). FIIN-2 was inactive up to a concentration of 1.8 μM against EGFR L858R. FIIN-2 showed rather poor potency against protein kinase FLT1 (FLT1). In WT FGFR2 Ba/F3 cells, FIIN-2 completely inhibited the FGFR2 autophosphorylation on mutations of Tyr656/657 and V564M at concentrations of 3 nM and 300 nM, respectively. [1]
Reference:
1.Tan L, Wang J, Tanizaki J et al. Development of covalent inhibitors that can overcome resistance to first-generation FGFR kinase inhibitors. Proc Natl Acad Sci U S A. 2014 Nov 11;111(45):E4869-77. doi: 10.1073/pnas.1403438111. Epub 2014 Oct 27.
- Bethoxazin
Catalog No.:BCC5471
CAS No.:163269-30-5
- Sitafloxacin Hydrate
Catalog No.:BCC4959
CAS No.:163253-35-8
- Clevudine
Catalog No.:BCC4770
CAS No.:163252-36-6
- 680C91
Catalog No.:BCC6158
CAS No.:163239-22-3
- Ezetimibe
Catalog No.:BCN2180
CAS No.:163222-33-1
- Cimifugin 4'-O-beta-D-glucopyranoside
Catalog No.:BCN7853
CAS No.:1632110-81-6
- (-)-[3R,4S]-Chromanol 293B
Catalog No.:BCC7080
CAS No.:163163-24-4
- Chromanol 293B
Catalog No.:BCC7055
CAS No.:163163-23-3
- Cannabisin F
Catalog No.:BCN4696
CAS No.:163136-19-4
- BYK 49187
Catalog No.:BCC2450
CAS No.:163120-31-8
- N-Benzylmaleimide
Catalog No.:BCC9095
CAS No.:1631-26-1
- Albatrelin G
Catalog No.:BCN7596
CAS No.:1630970-05-6
- Stachybotrylactam
Catalog No.:BCN6967
CAS No.:163391-76-2
- 2',4'-Di-O-(E-p-coumaroyl)afzelin
Catalog No.:BCN6512
CAS No.:163434-73-9
- Fmoc-Met(O2)-OH
Catalog No.:BCC3531
CAS No.:163437-14-7
- Flufenamic acid
Catalog No.:BCC9162
CAS No.:530-78-9
- Triptoquinonide
Catalog No.:BCN1724
CAS No.:163513-81-3
- Vilazodone Hydrochloride
Catalog No.:BCC2041
CAS No.:163521-08-2
- Vilazodone
Catalog No.:BCC2040
CAS No.:163521-12-8
- Kadsulignan N
Catalog No.:BCN3631
CAS No.:163564-58-7
- Fmoc-D-Trp(Boc)-OH
Catalog No.:BCC3561
CAS No.:163619-04-3
- Evofolin C
Catalog No.:BCN4695
CAS No.:163634-05-7
- Kadsulignan L
Catalog No.:BCN3627
CAS No.:163660-06-8
- Pazufloxacin mesilate
Catalog No.:BCC9114
CAS No.:163680-77-1
Development of covalent inhibitors that can overcome resistance to first-generation FGFR kinase inhibitors.[Pubmed:25349422]
Proc Natl Acad Sci U S A. 2014 Nov 11;111(45):E4869-77.
The human FGF receptors (FGFRs) play critical roles in various human cancers, and several FGFR inhibitors are currently under clinical investigation. Resistance usually results from selection for mutant kinases that are impervious to the action of the drug or from up-regulation of compensatory signaling pathways. Preclinical studies have demonstrated that resistance to FGFR inhibitors can be acquired through mutations in the FGFR gatekeeper residue, as clinically observed for FGFR4 in embryonal rhabdomyosarcoma and neuroendocrine breast carcinomas. Here we report on the use of a structure-based drug design to develop two selective, next-generation covalent FGFR inhibitors, the FGFR irreversible inhibitors 2 (FIIN-2) and 3 (FIIN-3). To our knowledge, FIIN-2 and FIIN-3 are the first inhibitors that can potently inhibit the proliferation of cells dependent upon the gatekeeper mutants of FGFR1 or FGFR2, which confer resistance to first-generation clinical FGFR inhibitors such as NVP-BGJ398 and AZD4547. Because of the conformational flexibility of the reactive acrylamide substituent, FIIN-3 has the unprecedented ability to inhibit both the EGF receptor (EGFR) and FGFR covalently by targeting two distinct cysteine residues. We report the cocrystal structure of FGFR4 with FIIN-2, which unexpectedly exhibits a "DFG-out" covalent binding mode. The structural basis for dual FGFR and EGFR targeting by FIIN3 also is illustrated by crystal structures of FIIN-3 bound with FGFR4 V550L and EGFR L858R. These results have important implications for the design of covalent FGFR inhibitors that can overcome clinical resistance and provide the first example, to our knowledge, of a kinase inhibitor that covalently targets cysteines located in different positions within the ATP-binding pocket.
FGFR inhibitors: Effects on cancer cells, tumor microenvironment and whole-body homeostasis (Review).[Pubmed:27245147]
Int J Mol Med. 2016 Jul;38(1):3-15.
Fibroblast growth factor (FGF)2, FGF4, FGF7 and FGF20 are representative paracrine FGFs binding to heparan-sulfate proteoglycan and fibroblast growth factor receptors (FGFRs), whereas FGF19, FGF21 and FGF23 are endocrine FGFs binding to Klotho and FGFRs. FGFR1 is relatively frequently amplified and overexpressed in breast and lung cancer, and FGFR2 in gastric cancer. BCR-FGFR1, CNTRL-FGFR1, CUX1-FGFR1, FGFR1OP-FGFR1, MYO18A-FGFR1 and ZMYM2-FGFR1 fusions in myeloproliferative neoplasms are non-receptor-type FGFR kinases, whereas FGFR1-TACC1, FGFR2-AFF3, FGFR2-BICC1, FGFR2-PPHLN1, FGFR3-BAIAP2L1 and FGFR3-TACC3 fusions in solid tumors are transmembrane-type FGFRs with C-terminal alterations. AZD4547, BGJ398 (infigratinib), Debio-1347 and dovitinib are FGFR1/2/3 inhibitors; BLU9931 is a selective FGFR4 inhibitor; FIIN-2, JNJ-42756493, LY2874455 and ponatinib are pan-FGFR inhibitors. AZD4547, dovitinib and ponatinib are multi-kinase inhibitors targeting FGFRs, colony stimulating factor 1 receptor (CSF1R), vascular endothelial growth factor (VEGF)R2, and others. The tumor microenvironment consists of cancer cells and stromal/immune cells, such as cancer-associated fibroblasts (CAFs), endothelial cells, M2-type tumor-associating macrophages (M2-TAMs), myeloid-derived suppressor cells (MDSCs) and regulatory T cells. FGFR inhibitors elicit antitumor effects directly on cancer cells, as well as indirectly through the blockade of paracrine signaling. The dual inhibition of FGF and CSF1 or VEGF signaling is expected to enhance the antitumor effects through the targeting of immune evasion and angiogenesis in the tumor microenvironment. Combination therapy using tyrosine kinase inhibitors (FGFR or CSF1R inhibitors) and immune checkpoint blockers (anti-PD-1 or anti-CTLA-4 monoclonal antibodies) may be a promising choice for cancer patients. The inhibition of FGF19-FGFR4 signaling is associated with a risk of liver toxicity, whereas the activation of FGF23-FGFR4 signaling is associated with a risk of heart toxicity. Endocrine FGF signaling affects the pathophysiology of cancer patients who are prescribed FGFR inhibitors. Whole-genome sequencing is necessary for the detection of promoter/enhancer alterations of FGFR genes and rare alterations of other genes causing FGFR overexpression. To sustain the health care system in an aging society, a benefit-cost analysis should be performed with a focus on disease-free survival and the total medical cost before implementing genome-based precision medicine for cancer patients.
DFG-out mode of inhibition by an irreversible type-1 inhibitor capable of overcoming gate-keeper mutations in FGF receptors.[Pubmed:25317566]
ACS Chem Biol. 2015 Jan 16;10(1):299-309.
Drug-resistance acquisition through kinase gate-keeper mutations is a major hurdle in the clinic. Here, we determined the first crystal structures of the human FGFR4 kinase domain (FGFR4K) alone and complexed with ponatinib, a promiscuous type-2 (DFG-out) kinase inhibitor, and an oncogenic FGFR4K harboring the V550L gate-keeper mutation bound to FIIN-2, a new type-1 irreversible inhibitor. Remarkably, like ponatinib, FIIN-2 also binds in the DFG-out mode despite lacking a functional group necessary to occupy the pocket vacated upon the DFG-out flip. Structural analysis reveals that the covalent bond between FIIN-2 and a cysteine, uniquely present in the glycine-rich loop of FGFR kinases, facilitates the DFG-out conformation, which together with the internal flexibility of FIIN-2 enables FIIN-2 to avoid the steric clash with the gate-keeper mutation that causes the ponatinib resistance. The structural data provide a blueprint for the development of next generation anticancer inhibitors through combining the salient inhibitory mechanisms of ponatinib and FIIN-2.
